OPEN-SMART Auto Bootloader Arduino Programmer for ATmega328P / ATmega328PB
This is specially designed for burning the bootLoader compatible with Arduino ATMmega328P/ATmega328PB development board.
There is no need to connect your board to a computer. Just plug this programmer into the ICSP interface of the Arduino compatible development board to re-burn the BootLoader.
It is also suitable for new chips. (Note that ICSP is an online download interface, which requires the chip itself to be working properly before It can be burned. Burning will erase all previous contents of the chip).
You need to supply power for your board, when this programmer gets the power at the first time.
Onboard indicator LED, one is green and the other is red. They will flash alternately when it is uploading, and the green led will stay on if it is done, otherwise the red led will stay on.
Features:
– Working voltage: 3.1 – 5.3V
– Working current: 10mA（Max）
– Which board it can upload bootloader to: compatible with Arduino UNO R3 with ATmega328P or ATmega328PB.
– Great for batch burning bootloader for Arduino.
Dimensions :
Pin name

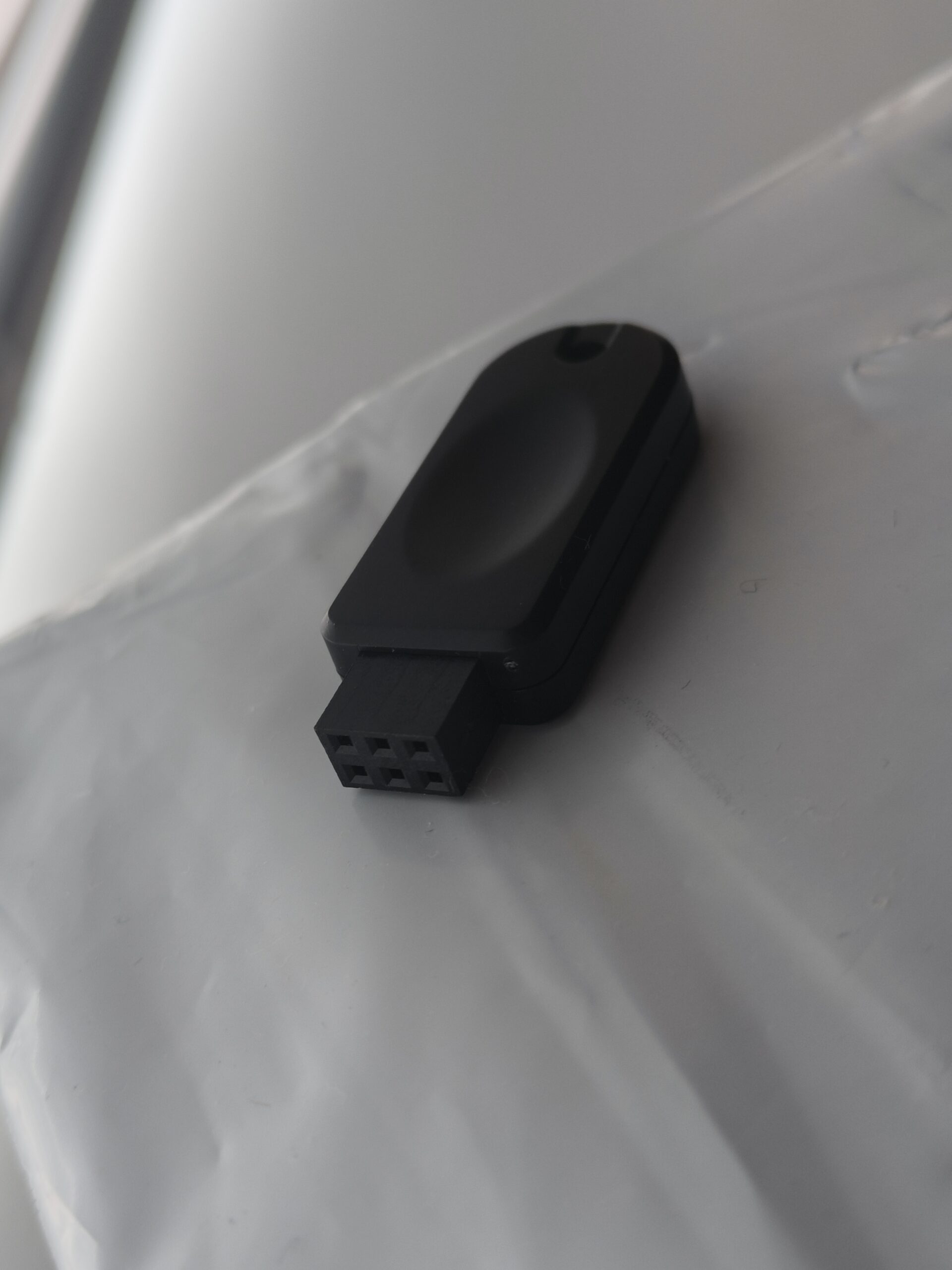

Photos
