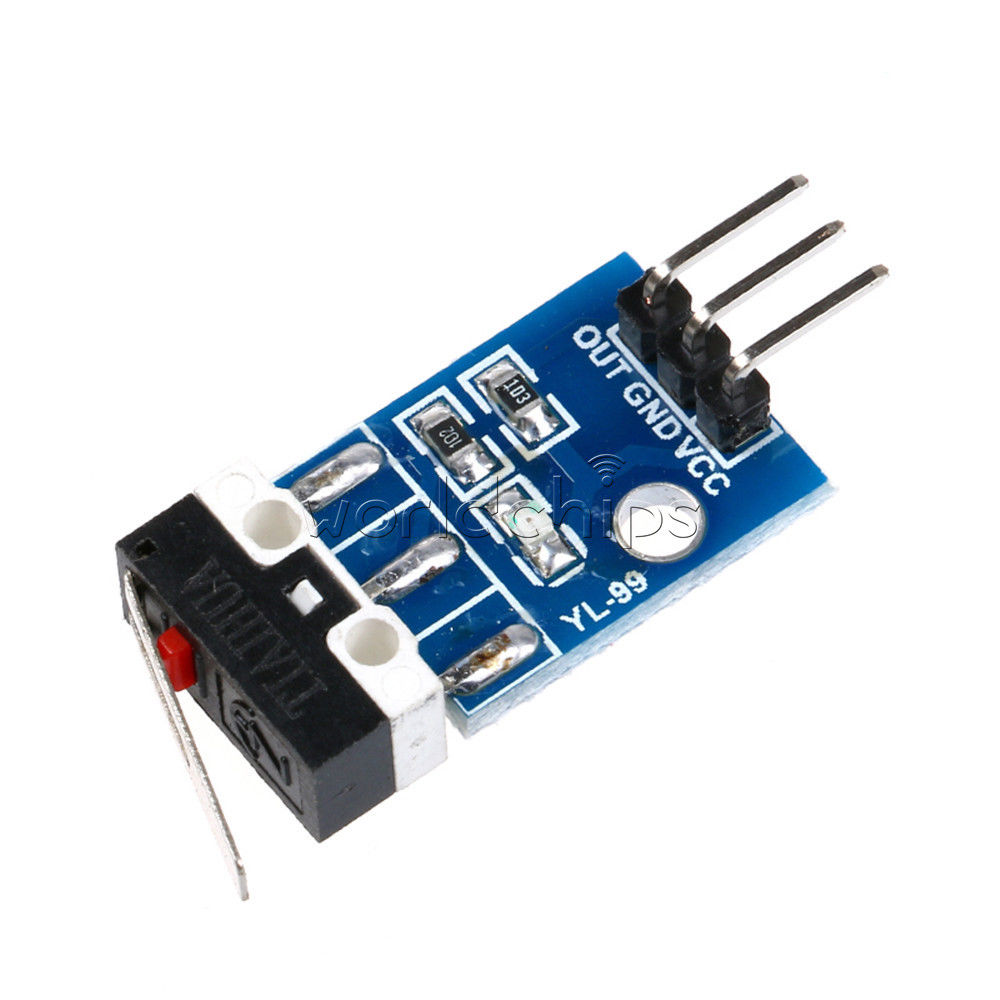

Collision Switch Sensor Module YL-99 for Arduino Robot Car + Raspberry pi Octopi / Octoprint Filament Sensor
1.Forefront of a switch module is installed there is a collision, the module output low, there is no collision, the output high.
2 module aside M3 mounting holes to facilitate fixed in a small car.
3 Module size: 2.5cm * 1.9cm
1.Forefront of a switch module is installed there is a collision, the module output low, there is no collision, the output high.
2 module aside M3 mounting holes to facilitate fixed in a small car.
3 Module size: 2.5cm * 1.9cm
4 lights with a switch, there is a collision, lights, no collision, lights out.
Module Pin Description：
1 vcc 3v-12v power supply
2 gnd connected to power ground
3 OUT output high and low
Never worry about running out of filament again!
This filament sensor works with any 3D printer running Octopi through a Raspberry Pi. Just connect it to the IO pins on the Pi and install the filament sensor plugin through Octoprint.
The filament sensor plugin for Octoprint allows you to define your own code to run when the sensor detects no filament. In most cases you can use the M600 command to start a filament change.
THIS SENSOR REQUIRES A 3D PRINTED HOUSING WHICH IS NOT INCLUDED!
Shipping Included:

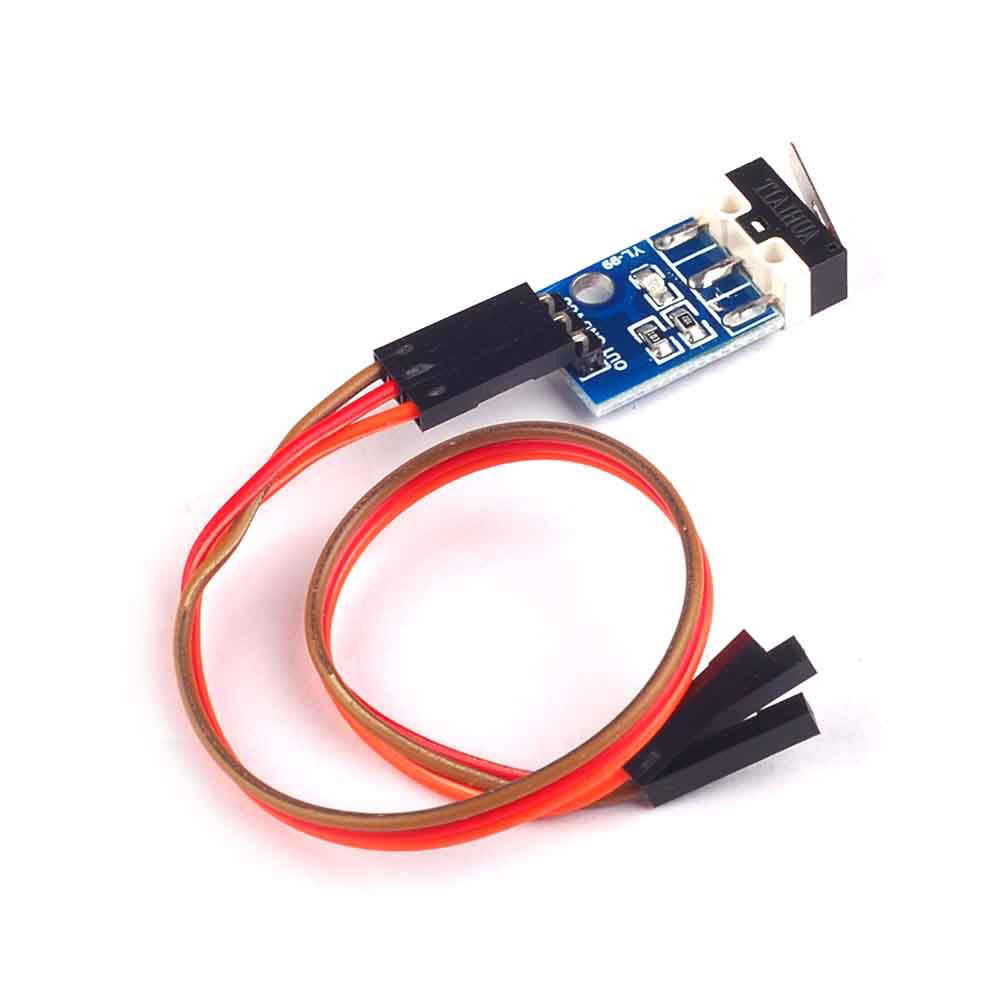

1PCS*Collision module
3PCS*Free dupont cables.
