SainSmart 2,8 tommer 240374PQ 262K color 240*320 2.8 inch Wide viewing angle ILI9325:240 RGB x 320 TFT Driver Integrated Power, Gate and Source Driver With RAM XPT2046-WIRE TOUCH,WIRE TOUCH, UP TO 125kHz CONVERSION RATE, SERIAL INTERFACE Voltage type: 5v or 3v voltage input voltage,input is selectable. Because TFT can only work under 3.3 V voltage, so when the input voltage VIN is 5V, need through the 3.3 V voltage regulator IC step down to 3.3V , when the input voltage of 3.3 V, you need to use the zero resistance make J2 short , is equivalent to not through the voltage regulator IC for module and power supply directly.(Click here) Note: the factory TFT module, are the 5 v power supply. By default. Carrying on board SD holder, its work to SPI mode.
This is SainSmart TFT LCD Extend shield for arduino UNO(R3) with LCD display. Using this shield can help you out of the bothers to use other cables. You just need to plug the module to arduino due through this shield.What is more,we will supply you technical support after your purchase.The document includes the example project,please contact us for the files.
Arduino

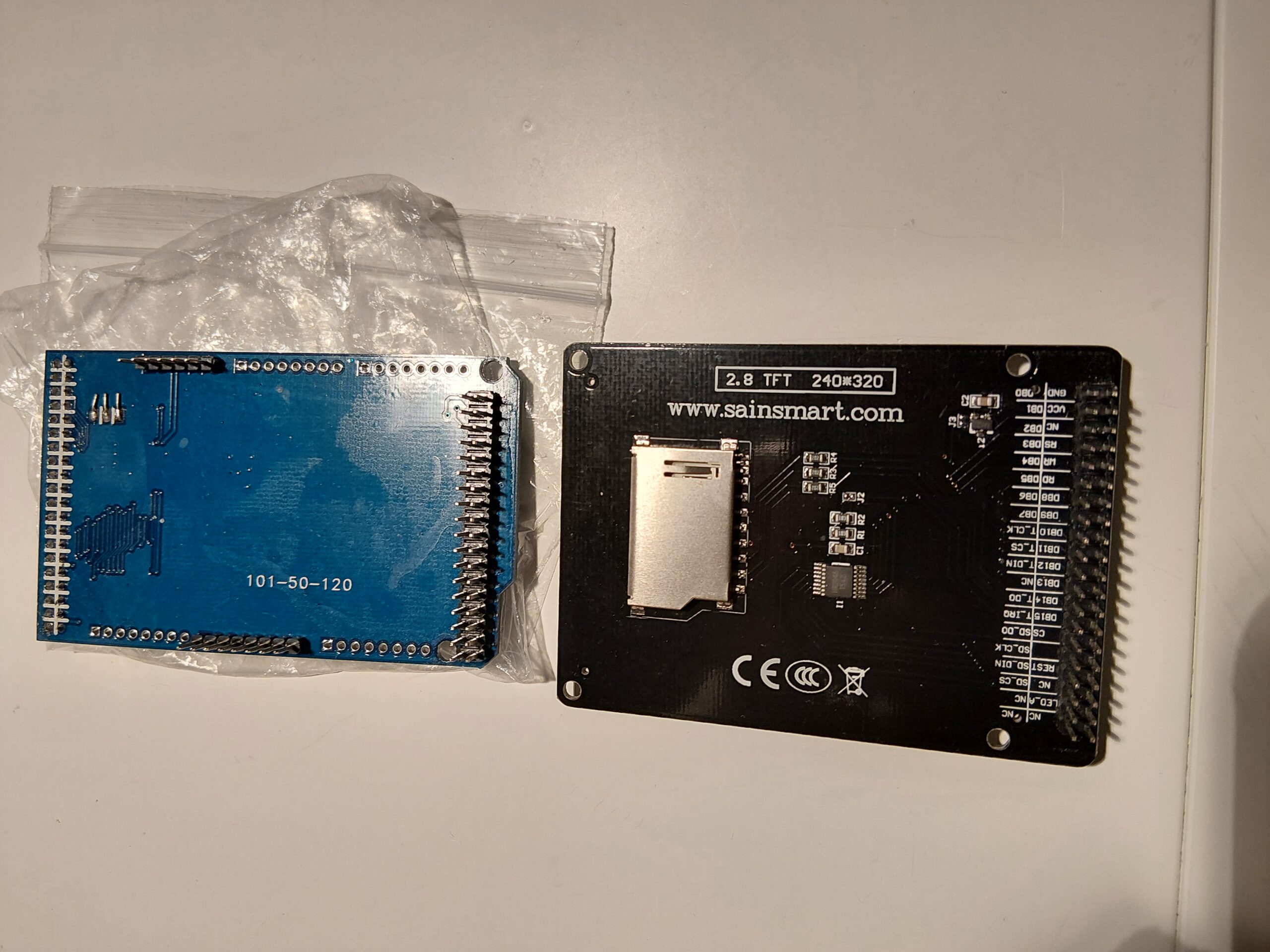

LCD Screen Arduino Due UNO R3 Mega2560 R3 + TFT Shield
190 kr
SainSmart 2.8″ TFT LCD Screen For Arduino Due UNO R3 Mega2560 R3 Raspberry Pi
Tilgjengelighet 1 på lager
If you connect the touch screen LCD with UNO R3, the touch screen function will be useless . If you want to use the touch function, please connect the LCD with Mega2560 (R3) or Due (R3). Thank you for your understanding.
